Main Dimensions & Performance Data

d

 660.4 mm

D

 939.8 mm

B

 136.52 mm

Cr

 923 N

Cor

 642 N

Weight

 275.36 g

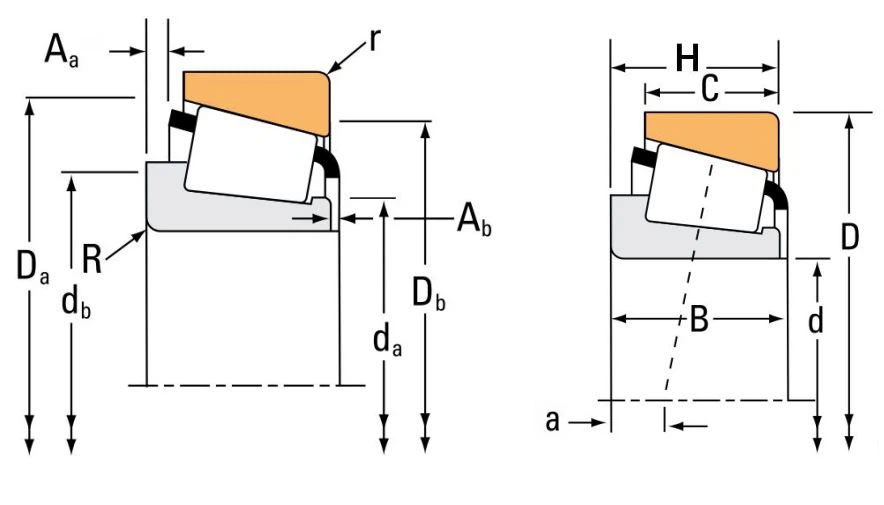

Mounting dimensions

d 660.4 mm
D 939.8 mm
H 136.52 mm
C1 3560 KN
e 0.41
Y 1.48
C90 923 KN
Ca90 642 KN
K 1.44
Co 7800 KN

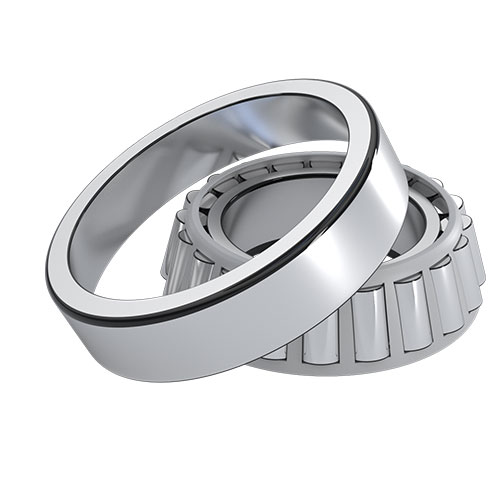

EE538260 cone
538370 cup
B 5 inch
C 3.875 inch
a 1.21 inch
R 0.25 inch
da 27.4 inch
db 27.87 inch
R 0.25 inch
Da 34.8 inch
Db 34.49 inch
Aa 0.86 inch
Ab 0.33 inch
G1 11455.4
G2 802.1
Cg 0.3078
m 275.36 KG
