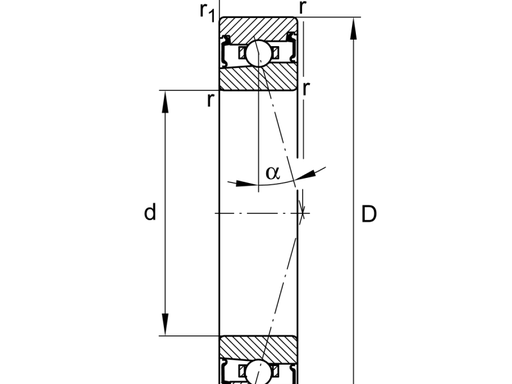

| d |
260 mm |
Inner diameter |
| D |
320 mm |
Outer diameter |
| B |
28 mm |
Width |
| rₘᵢₙ |
2.5 mm |
Minimum fillet radius |
| Cr |
158 kN |
Basic dynamic load rating |
| C0r |
192 kN |
Basic static load rating |
| Weight |
4.64 kg |
Single bearing weight |
| Grease |
3800 r/min |
Limit speed of grease lubrication |
| Oil-air |
6200 r/min |
Limit speed of oil-air lubrication |
| da |
272 mm |
Minimum diameter of shaft shoulder |
| Da |
308 mm |
Maximum diameter of outer ring mounting shoulder |
| ra |
2.0 mm |
Maximum permissible chamfer radius |
